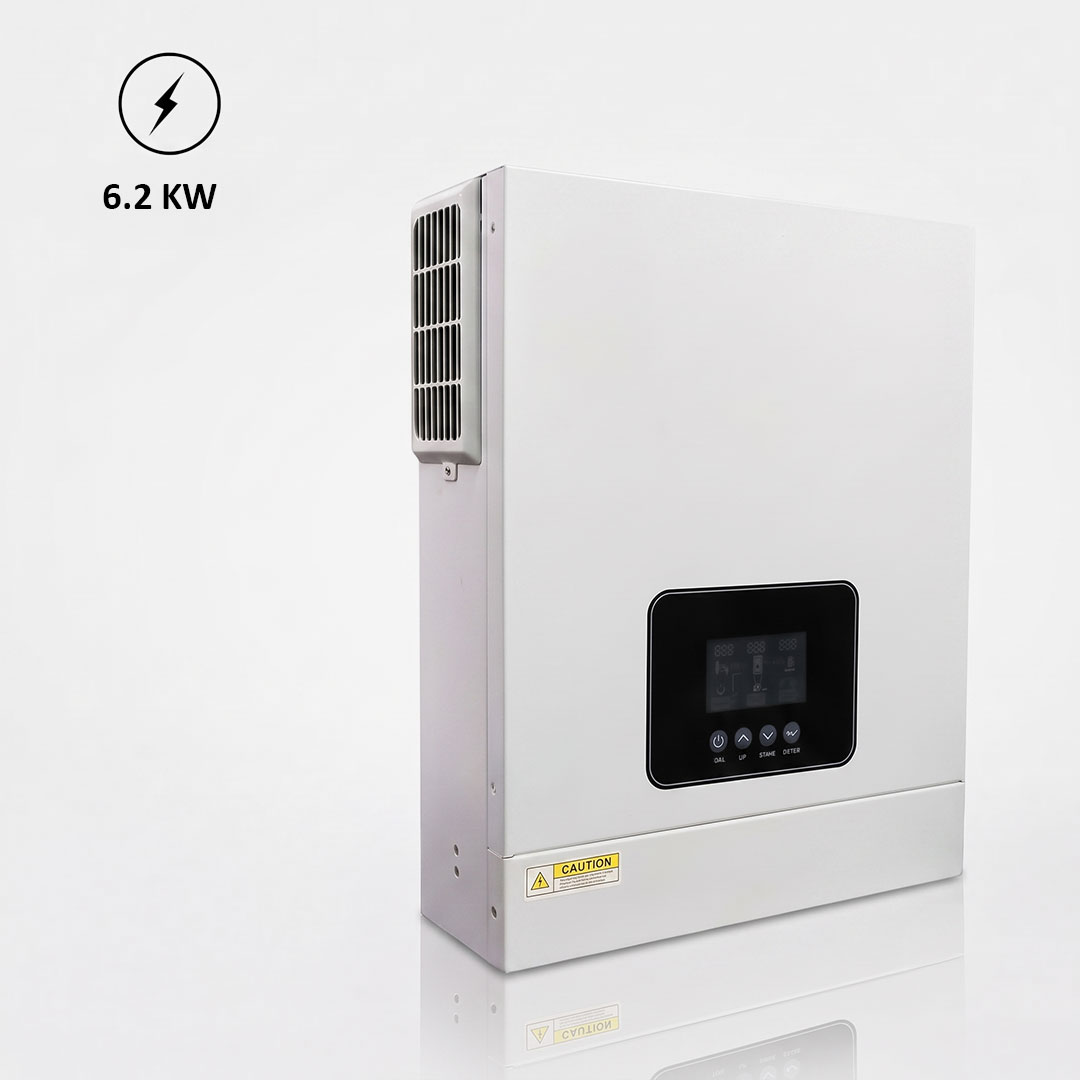

VMS-V-6K-24-H — 6200W Hybrid Solar Inverter
Get Quotation
| MODEL | VMS-V-6K-24-H |
| Rated Power | 6200W |
| Voltage | 220/230/240VAC |
| Output Waveform | Pure sine wave |
| Frequency Range | 50 Hz/60 Hz |
| Selectable Voltage Range | 170-280VAC (PC) 90-280VAC (Appliances) |
| Feed-in Grid Voltage Range | 195-253VAC |
| Feed-in Grid Frequency Range | 49-51±1HZ/59-61±1HZ |
| Maximum Load | 6200W |
| Dimension DxWxH (mm) | 147×432×553 |
| Net Weight (kg) | 9.4 |
| Humidity | 5%~95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to -50°C |
| Storage Temperature | -15°C to -60°C |
Description
The VMS-V-6K-24-H is a 6,200W on/off grid hybrid solar inverter suited for larger residential properties or small commercial premises with higher energy demands. It outputs a pure sine wave at 220/230/240VAC, compatible with all standard appliances, power tools, and sensitive electronics.
Supporting 50Hz and 60Hz, it features a selectable voltage range of 170–280VAC for PCs and 90–280VAC for home appliances. Feed-in grid voltage is 195–253VAC with frequency tolerance of 49–51±1Hz / 59–61±1Hz. Maximum load is 6,200W. Weighs 9.4kg in the 147×432×553mm enclosure. Operating temperature -10°C to +50°C, storage -15°C to +60°C, humidity 5%–95% non-condensing.
Technical specifications
| Model | VMS-V-6K-24-H |
| Rated power | 6,200W |
| Maximum load | 6,200W |
| Voltage | 220 / 230 / 240VAC |
| Output waveform | Pure sine wave |
| Frequency range | 50Hz / 60Hz |
| Selectable voltage range | 170–280VAC (PC) / 90–280VAC (Appliances) |
| Feed-in grid voltage | 195–253VAC |
| Feed-in grid frequency | 49–51±1Hz / 59–61±1Hz |
| Dimension DxWxH (mm) | 147×432×553 |
| Net weight | 9.4kg |
| Humidity | 5%–95% RH (Non-condensing) |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -15°C to +60°C |
Key features
- On/off grid hybrid — automatic source switching
Prioritises solar self-consumption, uses battery storage during outages, and falls back to grid automatically — zero manual intervention for the end user.
- Pure sine wave — 220/230/240VAC
Grid-quality output compatible with all load types including variable-speed motors, air conditioning compressors, computers, and sensitive electronics.
- 6,200W continuous load — handles larger homes
Supports concurrent operation of air conditioning, kitchen appliances, washing machine, and office equipment — suited for larger households or small business premises with higher simultaneous demand.
- Selectable voltage range — PC and appliance modes
170–280VAC for computers, 90–280VAC for home appliances — configurable to protect specific load types from voltage tolerance issues on variable supply networks.
- Broad grid tolerance — 195–253VAC / 49–51±1Hz
Accepts a wide grid voltage and frequency band, ensuring stable operation in regions where mains supply quality varies significantly throughout the day.
- Same compact footprint — 147×432×553mm / 9.4kg
Despite the higher output, the enclosure is identical to the 4.2KW model — a direct upgrade without changing the wall-mount installation, wiring routes, or bracket hardware.
