VMS-V-3.2K-24 — 3000W Off Grid Hybrid Solar Inverter
Get Quotation
| MODEL | VMS-V-2.2K-12 |
| Rated Power | 3000W |
| Voltage | 230VAC |
| Output Waveform | Pure sine wave |
| Frequency Range | 50 Hz/60 Hz |
| Selectable Voltage Range | 70-280VAC (PC) / 90-280VAC (Appliances) |
| Maximum Load | 3000W |
| PV Input Voltage | 40-400Vdc |
| Dimension DxWxH (mm) | 348×270×95 |
| Net Weight (kg) | 5 |
| Humidity | 5%~95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to -50°C |
| Storage Temperature | -15°C to -60°C |
Description

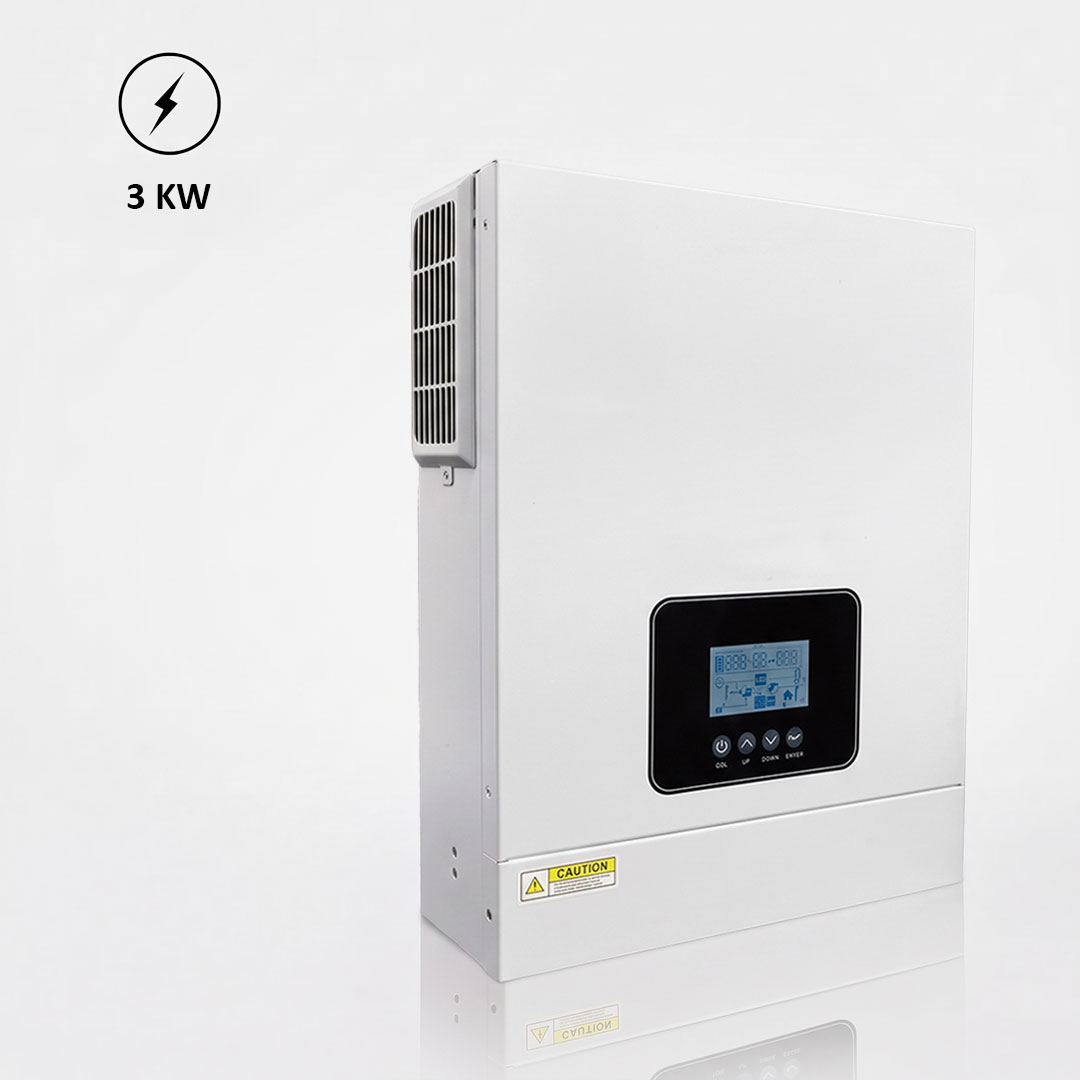

The VMS-V-3.2K-24 is a 3,000W off grid hybrid solar inverter designed for standalone solar installations requiring greater sustained output — suited for medium-sized homes, small farms, island properties, rural guesthouses, and off-grid commercial units operating multiple loads simultaneously.
Accepting a wide PV input of 40–400Vdc, it accommodates a broad range of solar panel string configurations without a separate MPPT charge controller. It outputs a pure sine wave at 220/230VAC on 50Hz or 60Hz, delivering grid-equivalent power quality to the full range of household appliances, computers, power tools, and sensitive electronics.
At a maximum load of 3,000W — equal to its rated power — the VMS-V-3.2K-24 delivers full continuous output without derating. This means it can simultaneously sustain a refrigerator, washing machine, lighting circuits, computer equipment, and a water pump at rated load without power reduction or thermal throttling. For medium-sized off-grid homes, this eliminates the need for careful load management that smaller inverters require.
The selectable voltage range of 70–280VAC for personal computers and 90–280VAC for home appliances allows both sensitive and standard load types to be protected on the same output simultaneously, without additional voltage regulation hardware.
Sharing the identical 348×270×95mm wall-mount enclosure as the 1,600W VMS-V-2.2K-12, it weighs just 5kg — making it a practical direct upgrade that requires no bracket or mounting changes. Single-engineer installation at remote and off-grid sites remains straightforward. Operating temperature -10°C to +50°C, storage -15°C to +60°C, humidity 5%–95% relative humidity (non-condensing).
Technical specifications
| Model | VMS-V-3.2K-24 |
| Rated power | 3,000W |
| Voltage output | 220 / 230VAC |
| Output waveform | Pure sine wave |
| Frequency range | 50Hz / 60Hz |
| PV input voltage | 40–400Vdc |
| Selectable voltage range | 70–280VAC (PC) / 90–280VAC (Appliances) |
| Maximum load | 3,000W |
| Dimension DxWxH (mm) | 348×270×95 |
| Net weight | 5kg |
| Humidity | 5%–95% RH (Non-condensing) |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -15°C to +60°C |
Key features
- 3,000W continuous — full rated output, zero derating
Delivers the full 3,000W continuously without thermal throttling or power reduction — sustains a refrigerator, washing machine, lighting, computer, and water pump running simultaneously in a medium-sized off-grid home.
- Wide PV input — 40 to 400Vdc
Broad solar string voltage acceptance supports flexible panel configurations — series, parallel, or mixed — without a separate charge controller, reducing system cost and installation complexity.
- Pure sine wave — 220/230VAC output
Grid-quality pure sine wave at 220 or 230VAC — fully compatible with inverter-driven air conditioners, variable-speed motors, sensitive computers, audio equipment, and all standard home appliances with no restrictions.
- Ideal for medium homes, farms & island sites
At 3KW, this model covers the full energy profile of a medium off-grid home or small farm — enough headroom to run all essential loads together without load scheduling or manual load management.
- Selectable voltage — PC and appliance modes
70–280VAC for computers, 90–280VAC for home appliances — configurable to protect both sensitive and standard loads on the same output simultaneously, without additional regulation equipment.
- Direct upgrade from 1,600W — same enclosure / 5kg
Identical 348×270×95mm form factor to the VMS-V-2.2K-12. Upgrading requires no mounting or bracket changes — only a component and battery voltage swap. At 5kg, remains fully installable by a single engineer at remote sites.
- Dual frequency — 50Hz and 60Hz
Compatible with solar installations across all major global markets — Africa, the Middle East, Europe, Asia, and the Americas — with no region-specific variant or frequency conversion needed.
