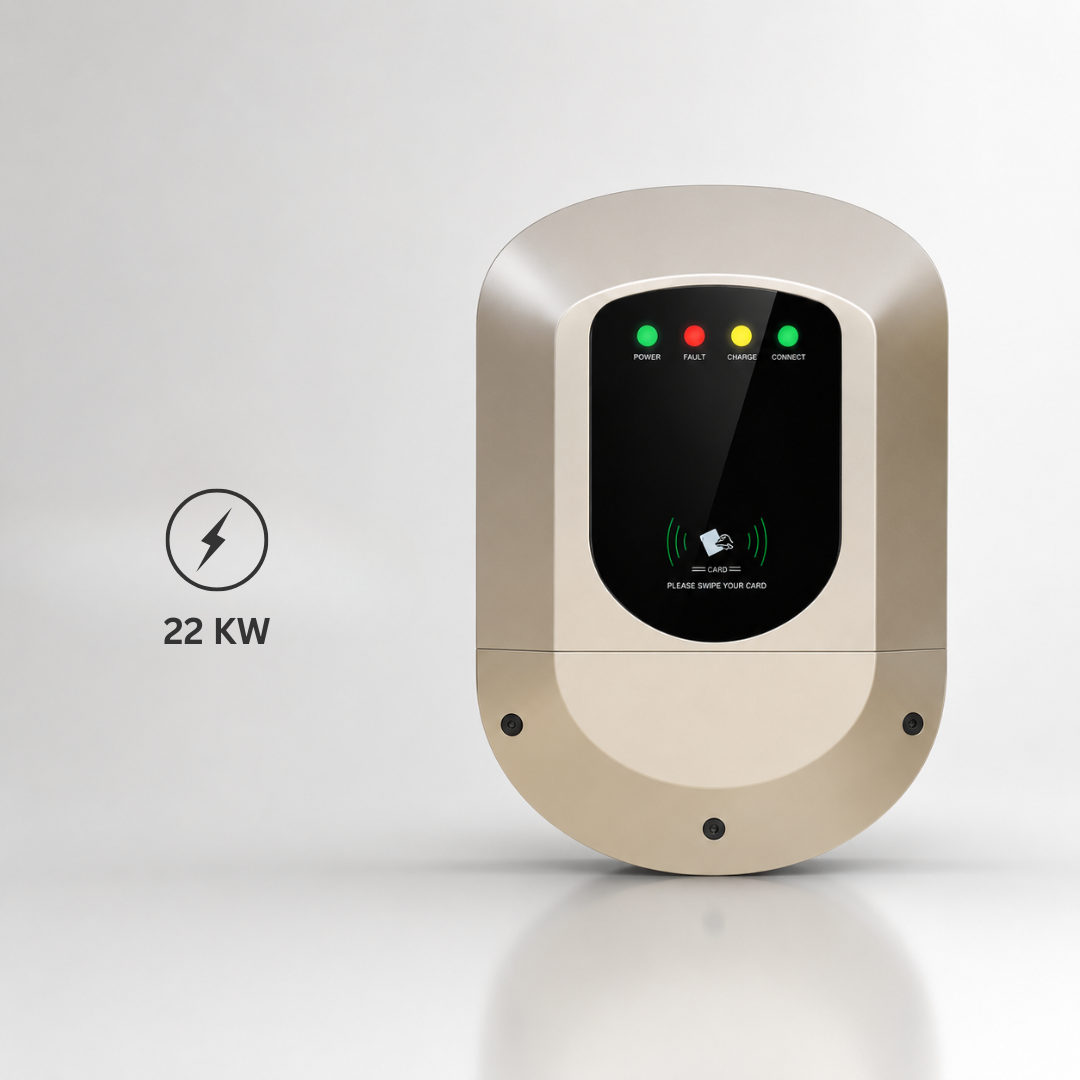

Smart 22KW EV Charger
Get Quotation
Smart 22 KW home and business wallbox with universal Type 1/Type 2 connectivity, OCPP 1.6 remote management, and built-in card & QR payment. IP54-rated with 8-layer safety protection for reliable indoor and outdoor installation.
| Technical Specification | |
| Shell Material | Sheet metal + tempered glass |
| Charging Interface | IEC 62196 Type 1/Type 2 |
| Output Current | 32A/16A/32A |
| Max power | 22KW |
| Input Voltage | 100~240V/380V±15% |
| Purpose | Home/Business |
| Output voltage | AC100~240V/380V±15% |
| Cable Length | 5M |
| User interface | LED(RGB)/LDE(4.3inch Color Display) |
| Protool | OCPP1.6 |
| Protection level | IP54 |
| Operating interface | -25°C~+50°C |
| Number of Interfaces | 1 |
| Payment method | Card swiping/QR code scanning |
|
Safety Functions |
Over – voltage protection, under – voltage protection over – load protection, short -circuit protection, grounding protection,over – temperature protection, lightning protection, emergency stop protection, leakage protection |
|
Management Functions |
OTA remote upgrade, equipment monitoring, LCD display, rate setting available,data communication, integrated card system |
Description
Deliver fast, reliable charging for any electric vehicle with this 22KW Smart AC Wallbox — engineered for both residential driveways and commercial fleet points. Built from sheet metal with a tempered glass front panel, the charger combines industrial durability with a premium look that suits any environment.
Powered by a universal 100–240V / 380V input (±15%), it outputs up to 32A at 22KW through a dual-standard IEC 62196 Type 1/Type 2 interface — covering the vast majority of EVs on the road today. A 5-metre tethered cable reaches most parking configurations without an adaptor.
The user interface gives operators a choice: a simple RGB LED status ring or a full 4.3-inch colour touchscreen display. Payments are equally flexible — accept card swipe or QR code scan, making this unit ideal for customer-facing locations, workplaces, or multi-tenant residential buildings.
Smart connectivity runs on OCPP 1.6, enabling OTA firmware upgrades, remote equipment monitoring, tariff and rate configuration, integrated RFID card management, and live data communication — all without a site visit. IP54-rated against dust and water jets, it operates reliably from -25°C to +50°C, making it suitable for outdoor installation in most climates.
Eight layers of active safety protection guard every session: over-voltage, under-voltage, overload, short-circuit, ground fault, over-temperature, lightning surge, emergency stop, and leakage detection — exceeding the safety demands of the most stringent commercial installations.
Technical specifications
| Shell material | Sheet metal + tempered glass |
| Charging interface | IEC 62196 Type 1 / Type 2 |
| Max output power | 22 KW |
| Output current | 16A / 32A (selectable) |
| Input voltage | 100–240V / 380V ±15% |
| Output voltage | AC 100–240V / 380V ±15% |
| Cable length | 5 m |
| Number of outlets | 1 |
| User interface | LED (RGB) or 4.3″ colour display |
| Communication protocol | OCPP 1.6 |
| Payment methods | Card swipe, QR code scan |
| Protection rating | IP54 |
| Operating temperature | -25°C to +50°C |
| Suitable for | Home, business, commercial |
Key features
Additional information
| Color | Beige, Black |
|---|
