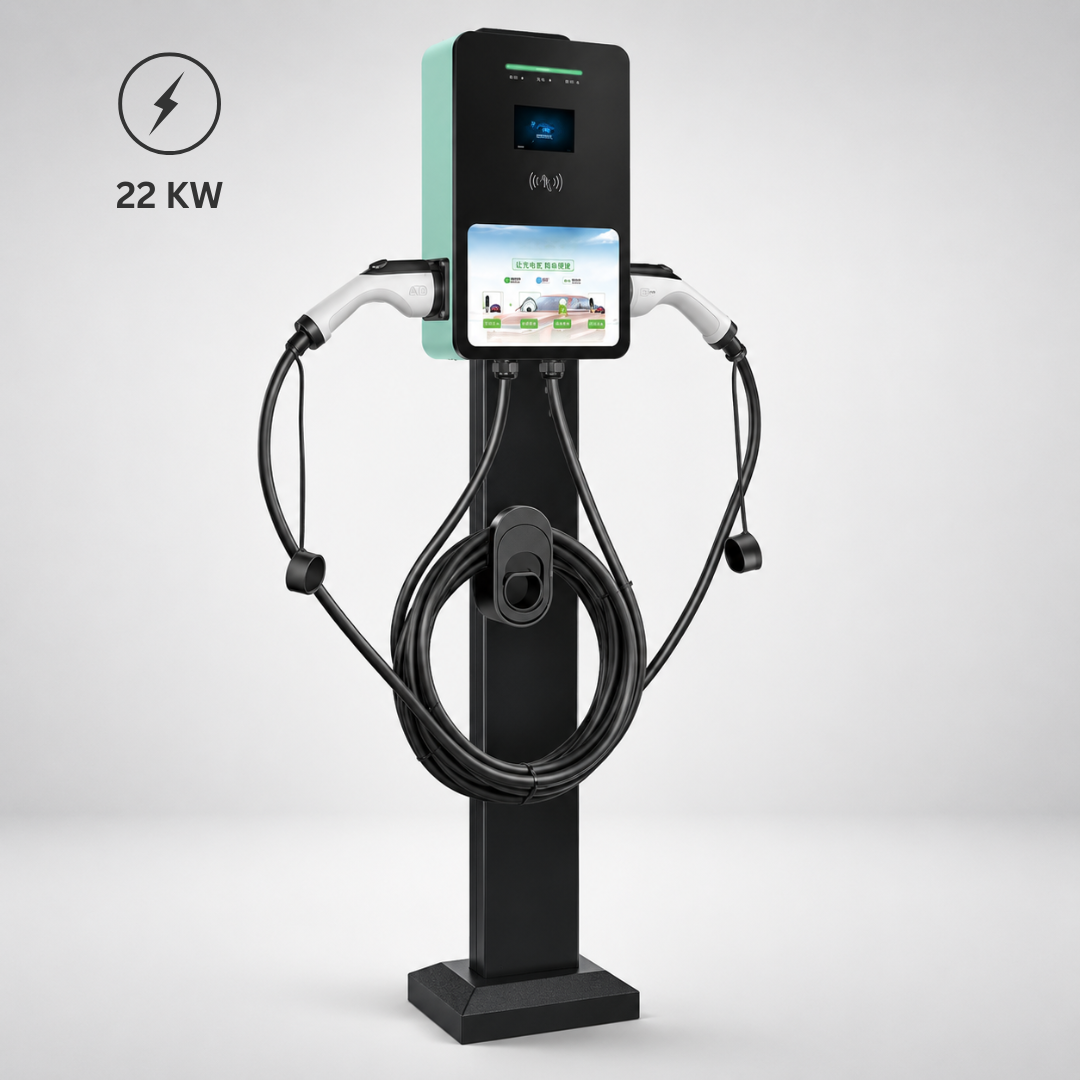

Smart 22KW Dual-Port EV Charger
Smart 22KW Dual-Port EV Charger - Image 2

Smart 22KW Dual-Port EV Charger

Get Quotation

Dual-port 22 KW wallbox that charges two EVs simultaneously at up to 32A per outlet, with OCPP 1.6 smart management and integrated card & QR payment. Built for homes with multiple vehicles, workplaces, and commercial car parks requiring maximum throughput from a single installation.

Technical Specification
Shell Material Sheet metal + tempered glass
Charging Interface IEC 62196 Type 1/Type 2
Output Current 32A*2/32A
Max power 22 KW
Input Voltage 100~240V
Purpose Home/Business
Output voltage AC100~240V
Cable Length 5M
User interface LED(RGB)/LDE(4.3inch Color Display)
Protool OCPP1.6
Protection level IP54
Operating interface -25°C~+50°C
Number of Interfaces 2
Payment method Card swiping/QR code scanning




Safety Functions

 Over – voltage protection, under – voltage protection over – load protection, short -circuit protection, grounding protection,over – temperature protection, lightning protection, emergency stop protection, leakage protection


Management Functions

 OTA remote upgrade, equipment monitoring, LCD display, rate setting available,data communication, integrated card system
- Get Quote -
Description

Description

Charge two electric vehicles simultaneously with this 22KW Smart Dual-Port AC Wallbox — the ideal upgrade for households with two EVs, small fleets, workplace car parks, and public charging bays. Two independent IEC 62196 Type 1/Type 2 outlets each deliver up to 32A, for a combined maximum output of 14KW from a single installation point.

The enclosure is built from heavy-gauge sheet metal with a tempered glass fascia, combining the structural robustness required for commercial settings with a premium aesthetic suited to hotels, showrooms, and residential developments. A 5-metre tethered cable per port covers most parking bays without adaptors.

Operators can choose between a compact RGB LED status indicator or a 4.3-inch full-colour display showing live session data, energy delivered, and tariff information per port. Accepting both card swipe and QR code payments out of the box, the unit is immediately revenue-ready for customer-facing locations — no additional payment terminals required.

Network connectivity runs on OCPP 1.6, giving fleet and facilities managers full remote control: OTA firmware upgrades, live equipment monitoring, configurable pricing rates, integrated RFID card management, and real-time data reporting — all accessible without a site visit. IP54-rated against dust and water jets, the charger operates reliably between -25°C and +50°C, making it dependable in outdoor installations across all seasons.

Every charging session is protected by eight concurrent safety layers: over-voltage, under-voltage, overload, short-circuit, grounding fault, over-temperature, lightning surge, emergency stop, and leakage detection — providing the comprehensive protection demanded by commercial operators and insurers alike.

 Technical specifications

Shell material Sheet metal + tempered glass
Charging interface IEC 62196 Type 1 / Type 2
Max output power 22 KW (combined)
Output current 32A × 2 ports (32A per port)
Number of outlets 2 (simultaneous charging)
Input voltage 100–240V
Output voltage AC 100–240V
Cable length 5 m (per port)
User interface LED (RGB) or 4.3″ colour display
Communication protocol OCPP 1.6
Payment methods Card swipe, QR code scan
Protection rating IP54
Operating temperature -25°C to +50°C
Suitable for Home, business, commercial

 Key features

– 22 KW dual-port simultaneous charging

Two fully independent 32A outlets deliver a combined 22KW — charge two EVs at the same time without splitting or load-sharing, halving queue times at shared charging locations.

– Universal Type 1 / Type 2 compatibility
IEC 62196 dual-standard connectors on both ports ensure compatibility with virtually all EVs and PHEVs sold globally — no adapters needed.
– OCPP 1.6 full remote management
OTA upgrades, live per-port monitoring, configurable tariffs, RFID card integration, and real-time session data — manage an entire site remotely from a single dashboard.
– Revenue-ready dual payment
Accepts card swipe and QR code scan per session — ideal for hospitality, retail car parks, and multi-tenant buildings that need ad-hoc or subscription billing without extra terminals.
– 8-layer active safety system
Over-voltage, under-voltage, overload, short-circuit, grounding, over-temperature, lightning surge, emergency stop, and leakage protection — active across both ports simultaneously.
– IP54 all-weather outdoor rating
Sealed against dust and water jets, rated for -25°C to +50°C operation — reliable for outdoor car parks, forecourts, and uncovered bays year-round.
– 4.3″ colour display or RGB LED
The full-colour touchscreen shows live session status, energy consumed, and tariff per port. The LED option suits minimalist installs where screen space or visibility isn’t a priority.
– Commercial-grade enclosure
Sheet metal body with tempered glass panel withstands the wear of high-traffic commercial sites while maintaining a clean, professional appearance for public-facing installations.
