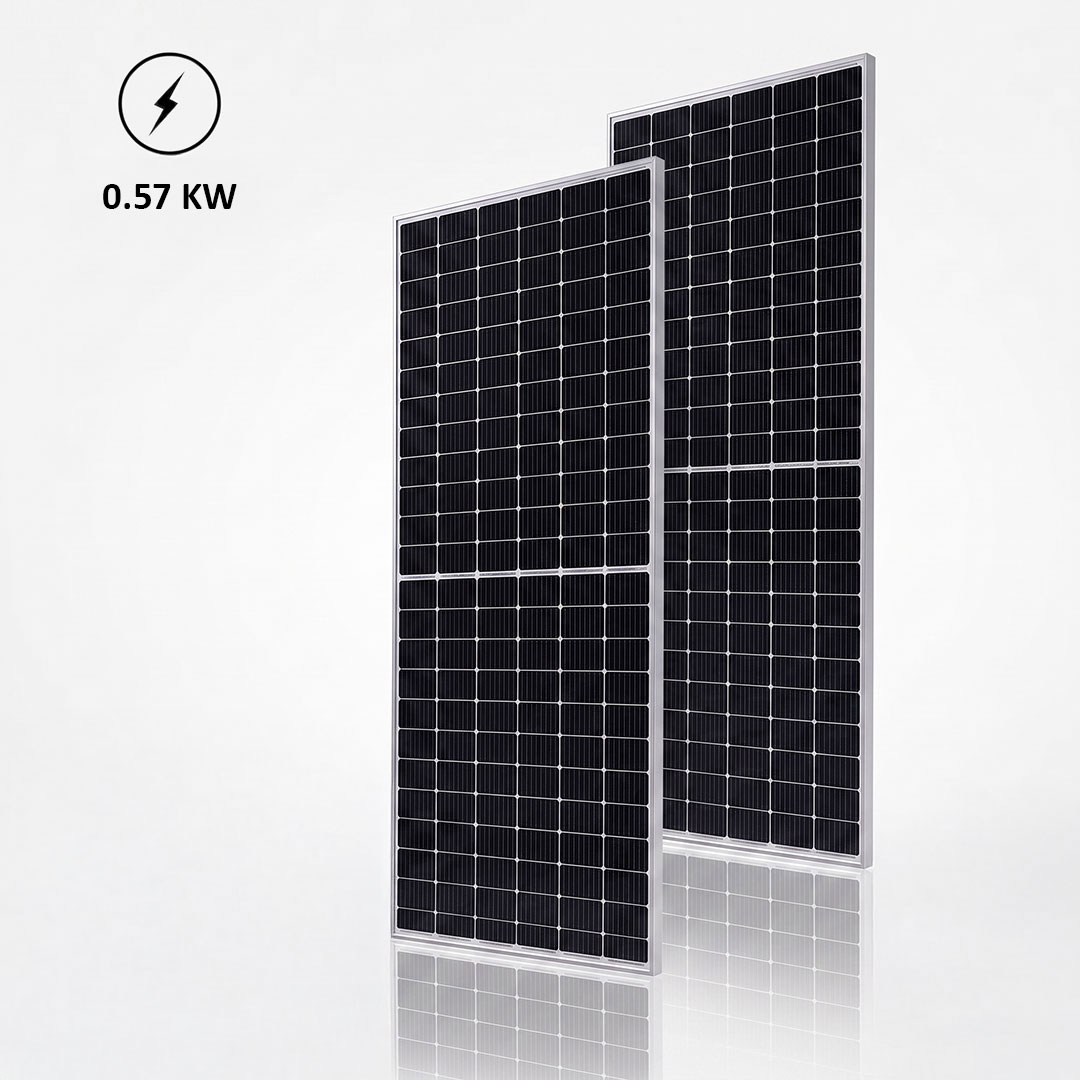

N‑TOPCon Double‑Glass Monocrystalline Module — 575W - Image 1

N‑TOPCon Double‑Glass Monocrystalline Module — 575W

Get Quotation

Property Value
Cell Type N-type single crystal TOPCon
Cell size (mm) 182×91
Quantity 144
Glass thickness (mm) 2.0
Junction Box IP68
Frame type Anodized aluminum alloy
Component dimensions (mm) 2278×1134×30
Weight (kg) 32
Connector 4.0mm², MC4 compatible +
Connector length 300mm/-200mm
Description

Description

The N‑TOPCon Double‑Glass 575W module combines next‑generation N‑type TOPCon cell technology with a durable dual‑glass construction to deliver high power, low degradation and superior mechanical resilience for utility‑scale and large commercial PV projects. Using 182 × 91 mm N‑type single‑crystal TOPCon cells in a 144‑cell layout, this module achieves 575 W nominal power while minimizing LID/LeTID losses and improving energy yield over time. The double‑glass design (2.0 mm glass front and back) increases module stiffness and moisture resistance, extending life in harsh environments. Modules are built on an anodized aluminum alloy frame, use IP68 junction boxes and MC4‑compatible connectors with asymmetric cable lengths for installation convenience. Packaging is optimized for shipment: 36 pcs per 40ft (HQ) box, 20 boxes (720 pcs) per shipment.

Product specifications

Specification Value
Product name N‑TOPCon Double‑Glass Monocrystalline Module — 575W
Cell type N‑type single‑crystal TOPCon
Cell size 182 × 91 mm
Number of cells 144
Module power 575 W
Module dimensions 2278 × 1134 × 30 mm
Module height 30 mm
Module weight 32 kg
Glass thickness 2.0 mm (double glass)
Frame Anodized aluminum alloy
Junction box IP68
Connector 4.0 mm², MC4 compatible
Connector length (+) 300 mm / (‑) 200 mm
Max system voltage Typically 1500 V DC (confirm per datasheet)
Typical applications Utility‑scale, large commercial, ground‑mounted arrays

Packaging & logistics

Item Value
Pieces per box 36
Packaging box dimensions 2300 × 1120 × 1260 mm
Gross weight per box 1180 kg
Total pieces (shipment) 720
Number of boxes (shipment) 20
Box type 40 ft (HQ)

  • N‑type TOPCon cells: higher efficiency, lower degradation (reduced LID/LeTID) and improved long‑term energy yield.

  • High power: 575 W per module reduces BOS and land use for large projects.

  • Double‑glass construction: 2.0 mm glass front and back for superior mechanical strength, enhanced PID and moisture resistance.

  • Robust frame: anodized aluminum for corrosion resistance and structural support.

  • IP68 junction box: reliable protection and three‑diode bypass (confirm model) for hot‑spot mitigation.

  • Installer‑ready: 4.0 mm² MC4‑compatible connectors with asymmetric cable lengths for easier stringing.

  • Freight optimized: 36 pcs per 40ft HQ box to streamline logistics.
