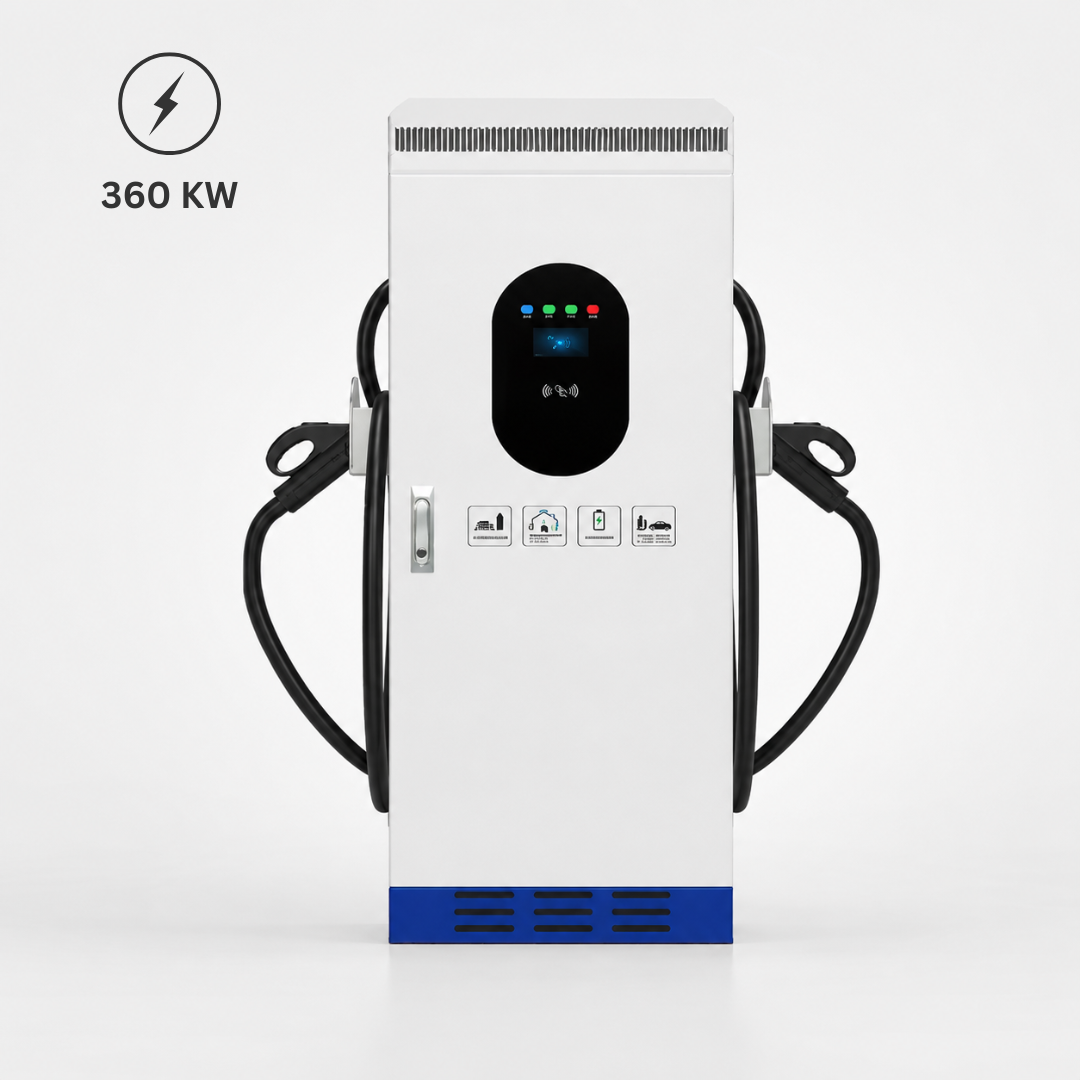

DC Charging STACK 360kW - Image 1

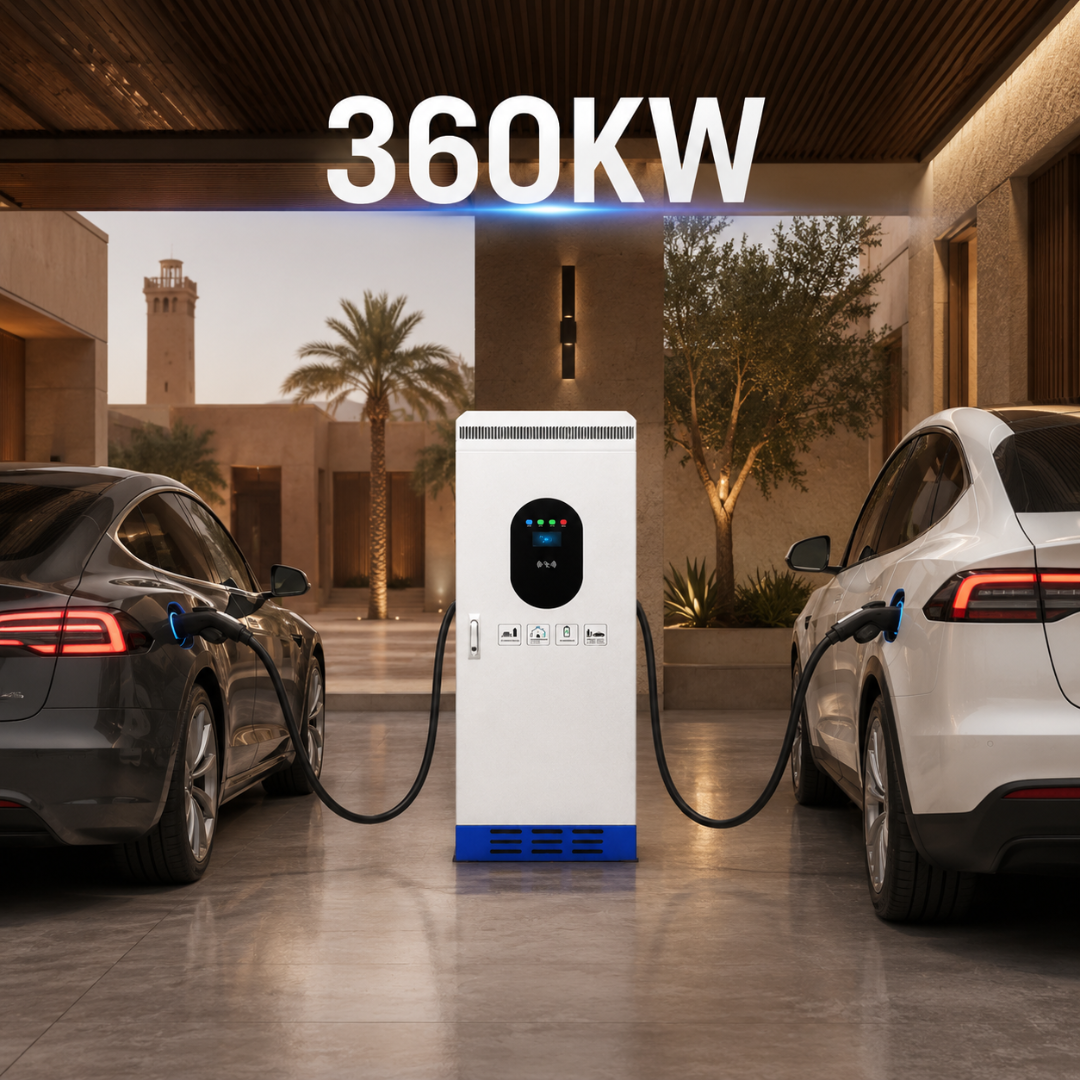

DC Charging STACK 360kW - Image 2
DC Charging STACK 360kW
DC Charging STACK 360kW - Image 2

DC Charging STACK 360kW

Get Quotation

A centrally-powered 360KW charging array serving 6 to 8 simultaneous DC bays from a single three-phase connection — available with liquid-cooled 600A or air-cooled 300A cables to match deployment requirements. OCPP 1.6 managed as a single network node with built-in payment, IP54 outdoor rating, and full 800V vehicle compatibility for superhub, fleet depot, and large-scale public infrastructure.

Technical Specification
Shell Material Sheet metal + tempered glass
Charging Interface IEC 62196 Type 1/Type 2
Output Current Up to 600A (liquid cooled); up to 300A (air cooled)
Max power 360KW
Input Voltage AC380V±15%
Purpose Business
Output voltage DC200-1000V
Cable Length 5M
User interface LED(RGB)/LDE(4.3inch Color Display)
Protool OCPP1.6
Protection level IP54
Operating interface -25°C~+50°C
Number of Interfaces 6/8
Payment method Card swiping/QR code scanning


Safety Functions

 Over – voltage protection, under – voltageprotection, over – load protection, short -circuit protection, grounding protection,over – temperature protection, lightning protection, emergency stop protection, leakage protection
Management Functions OTA remote upgrade, equipment monitoring, LCD display, rate setting available,data communication, integrated card system
- Get Quote -
Description

Description

The DC Charging STACK 360kW is a high-power, commercial-grade EV fast-charging station engineered for fleet depots, highway charging hubs, and large-scale commercial sites. Built with a robust sheet‑metal chassis and tempered glass front, the STACK delivers up to 360 kW DC output with flexible liquid- or air-cooled architectures to support high continuous currents (up to 600A liquid-cooled, up to 300A air-cooled). The unit supports IEC 62196 Type 1 and Type 2 charging interfaces, wide DC output range for multiple vehicle battery systems, and advanced safety and management functions including OCPP 1.6 protocol support, OTA upgrades and integrated payment options. A 5 m charging cable and an intuitive 4.3-inch color display with RGB LED status indicators make operation straightforward. Designed for demanding environments (IP54) and a broad temperature range, the STACK is purpose-built for business deployments requiring high throughput, reliability, and remote management.

Product specifications

Specification Details
Product name DC Charging STACK 360kW
Max power 360 kW
Output current Up to 600 A (liquid-cooled); up to 300 A (air-cooled)
Output voltage DC 200–1000 V
Input voltage AC 380 V ±15%
Number of interfaces 6 / 8
Charging interface IEC 62196 Type 1 / Type 2
Cable length 5 m
User interface LED (RGB) and LCD 4.3″ color display
Protocol OCPP 1.6
Protection level IP54
Operating temperature -25°C to +50°C
Shell material Sheet metal + tempered glass
Payment methods Card swiping, QR code scanning
Safety functions Over-voltage protection, under-voltage protection, over-load protection, short-circuit protection, grounding protection, over-temperature protection, lightning protection, emergency stop, leakage protection
Management functions OTA remote upgrade, equipment monitoring, LCD display, rate setting, data communication, integrated card system
Purpose Business (commercial charging deployments)

Key features

  • 360 kW max DC power for ultra-fast charging of multiple vehicles simultaneously.

  • High current capability: up to 600 A with liquid cooling for sustained high-power operation.

  • Flexible charging interfaces: IEC 62196 Type 1 and Type 2 supported.

  • Wide DC output range: DC 200–1000 V to serve diverse EV battery systems.

  • Multi‑port configurations: available with 6 or 8 interfaces to maximize throughput.

  • Robust construction: sheet‑metal body with tempered glass front for durability and professional appearance.

  • Weather resistant: IP54 protection for outdoor and semi-outdoor sites.

  • Intuitive UX: RGB LED status indicators and 4.3-inch color LCD for clear user feedback.

  • Secure payments: card swipe and QR code scanning integrated.

  • Advanced safety: comprehensive protections including over/under voltage, overload, short-circuit, grounding, over-temperature, lightning, emergency stop and leakage protection.

  • Fleet/operations friendly: OCPP 1.6 support plus OTA upgrades, remote monitoring, data communication and rate-setting.
