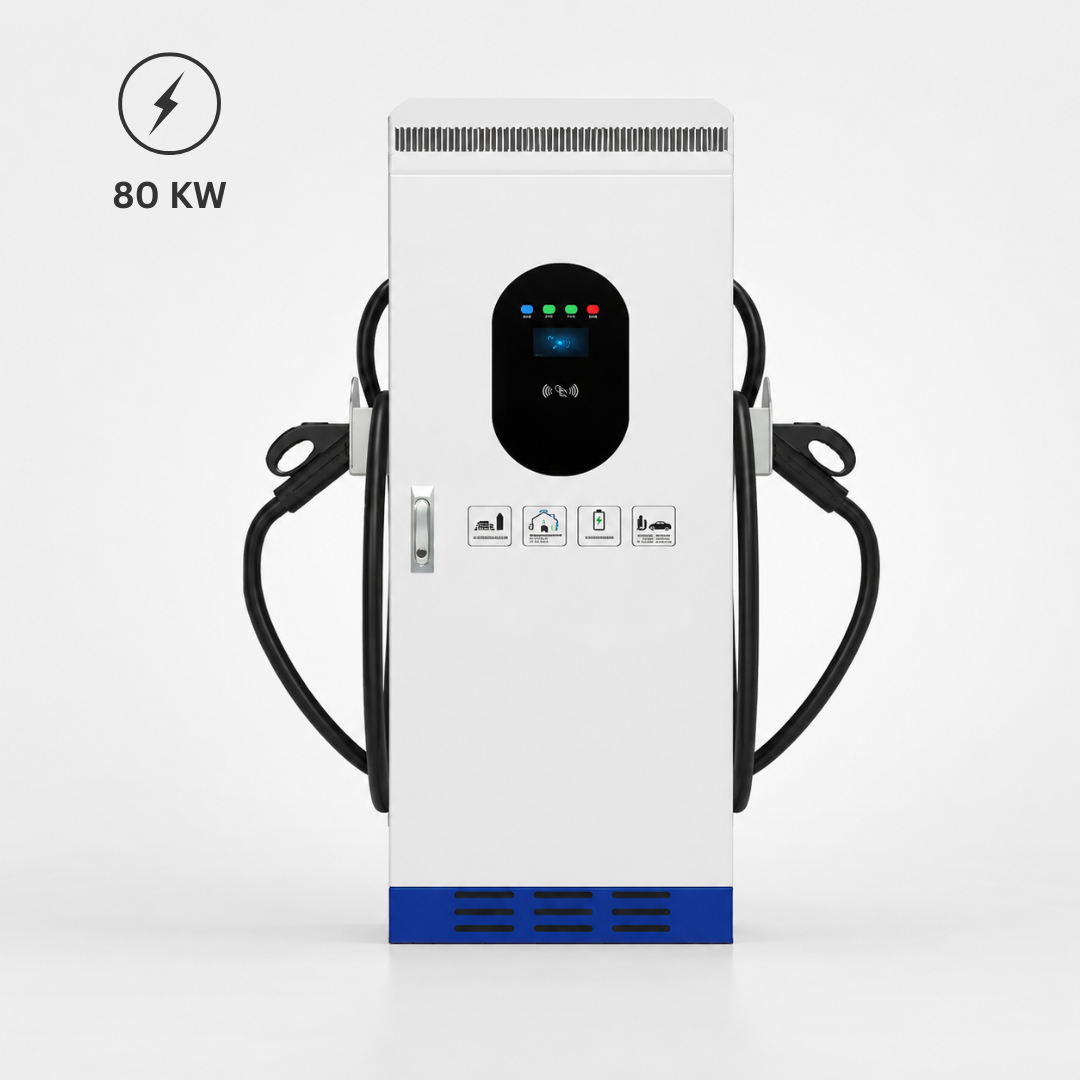

Commercial 80KW DC Fast Charging Pile
Get Quotation
Commercial 80KW DC fast charger with two independent 200A ports delivering DC 200–1000V output — cutting typical charge times to under an hour for most EVs. OCPP 1.6 connected with built-in dual payment, IP54 weatherproofing, and 8-layer safety protection for public and fleet deployment.
| Technical Specification | |
| Shell Material | Sheet metal + tempered glass |
| Charging Interface | IEC 62196 Type 1/Type 2 |
| Output Current | 125A/200A/200A |
| Max power | 80KW |
| Input Voltage | AC380V±15% |
| Purpose | Business |
| Output voltage | DC200-1000V |
| Cable Length | 5M |
| User interface | LED(RGB)/LDE(4.3inch Color Display) |
| Protool | OCPP1.6 |
| Protection level | IP54 |
| Operating interface | -25°C~+50°C |
| Number of Interfaces | 2 |
| Payment method | Card swiping/QR code scanning |
|
Safety Functions |
Over – voltage protection, under – voltageprotection, over – load protection, short -circuit protection, grounding protection,over – temperature protection, lightning protection, emergency stop protection, leakage protection |
| Management Functions | OTA remote upgrade, equipment monitoring, LCD display, rate setting available,data communication, integrated card system |
Description
Deliver high-speed DC fast charging at commercial scale with this 80KW Dual-Port Charging Pile — engineered for petrol station forecourts, motorway service areas, fleet depots, shopping centres, and public EV hubs. Unlike AC wallboxes that depend on the vehicle’s onboard charger, this unit converts three-phase AC 380V mains directly to DC, bypassing vehicle limitations and delivering up to 200A at DC 200–1000V straight to the battery for significantly shorter charge times.
Two independent IEC 62196 Type 1/Type 2 outlets allow two vehicles to charge simultaneously at full output, maximising throughput at busy commercial sites. A 5-metre cable per port provides comfortable reach across standard parking bays and forecourt layouts.
Operators have a choice of user interface: a compact RGB LED status ring for minimal installs, or a 4.3-inch full-colour display showing live session data, state of charge, energy delivered, and tariff information per port. Revenue collection is built in — accept card swipe or QR code scan on demand, making each session immediately billable without third-party payment hardware.
Network management runs on OCPP 1.6, providing remote OTA firmware updates, live per-port equipment monitoring, configurable pricing and tariff schedules, integrated RFID card access management, and real-time session data communication — everything a site operator or CPO needs to manage a distributed charging network from a central platform.
Built to IP54 standards and rated for operation between -25°C and +50°C, the charging pile maintains reliable performance in outdoor commercial environments across all climates and seasons. Eight simultaneous safety protection layers — covering over-voltage, under-voltage, overload, short-circuit, grounding fault, over-temperature, lightning surge, emergency stop, and leakage detection — ensure every session meets the stringent safety requirements of commercial public infrastructure.
Technical specifications
| Shell material | Sheet metal + tempered glass |
| Charging interface | IEC 62196 Type 1 / Type 2 |
| Max output power | 80 KW |
| Output current | 125A / 200A (up to 200A per port) |
| Number of outlets | 2 (simultaneous DC fast charging) |
| Input voltage | AC 380V ±15% (three-phase) |
| Output voltage | DC 200–1000V |
| Cable length | 5 m (per port) |
| User interface | LED (RGB) or 4.3″ colour display |
| Communication protocol | OCPP 1.6 |
| Payment methods | Card swipe, QR code scan |
| Protection rating | IP54 |
| Operating temperature | -25°C to +50°C |
| Suitable for | Commercial, public, fleet |
Key features
– 80KW DC fast charging — significantly shorter charge times
Converts AC 380V mains directly to DC and bypasses the vehicle’s onboard AC charger, pushing up to 200A straight into the battery. A typical 40–60kWh EV battery can reach 80% in under 30 minutes depending on the vehicle’s DC acceptance rate.
– Dual-port simultaneous output — 2 × 200A
Two fully independent IEC 62196 outlets each support up to 200A DC output. Both ports operate simultaneously at full capacity, doubling site throughput without requiring a second installation.
– Wide DC output range: 200–1000V
Broad voltage compatibility across the full DC 200–1000V range ensures the pile charges entry-level EVs and high-voltage premium vehicles — including 800V-architecture models — from a single unit.
– OCPP 1.6 network management
Full CPO-ready feature set: OTA firmware upgrades, real-time per-port monitoring, configurable tariff and pricing schedules, RFID card access management, and live data communication — manageable from any OCPP-compatible back-office platform.
-Built-in revenue collection — card & QR
Card swipe and QR code payment accepted directly at the unit — no third-party payment terminal required. Suitable for pay-as-you-go public charging or membership-based fleet billing.
-8-layer commercial-grade safety protection
Over-voltage, under-voltage, overload, short-circuit, grounding fault, over-temperature, lightning surge, emergency stop, and leakage protection — active across both DC ports simultaneously, meeting public infrastructure safety standards.
-IP54 rated — outdoor commercial deployment
Sealed against dust and water jets, rated for -25°C to +50°C. Engineered for year-round outdoor use at forecourts, car parks, and service areas without additional weatherproofing.
– 4.3″ colour display with per-port session data
The full-colour screen shows real-time state of charge, energy delivered, session duration, and tariff per port. RGB LED option available for space-constrained or brand-integrated installations.
